flexFX

Analog overdrive unit

Controls that tilt toward you, then fold flat.

January 2025

Analog audio
PCB design
3D printing

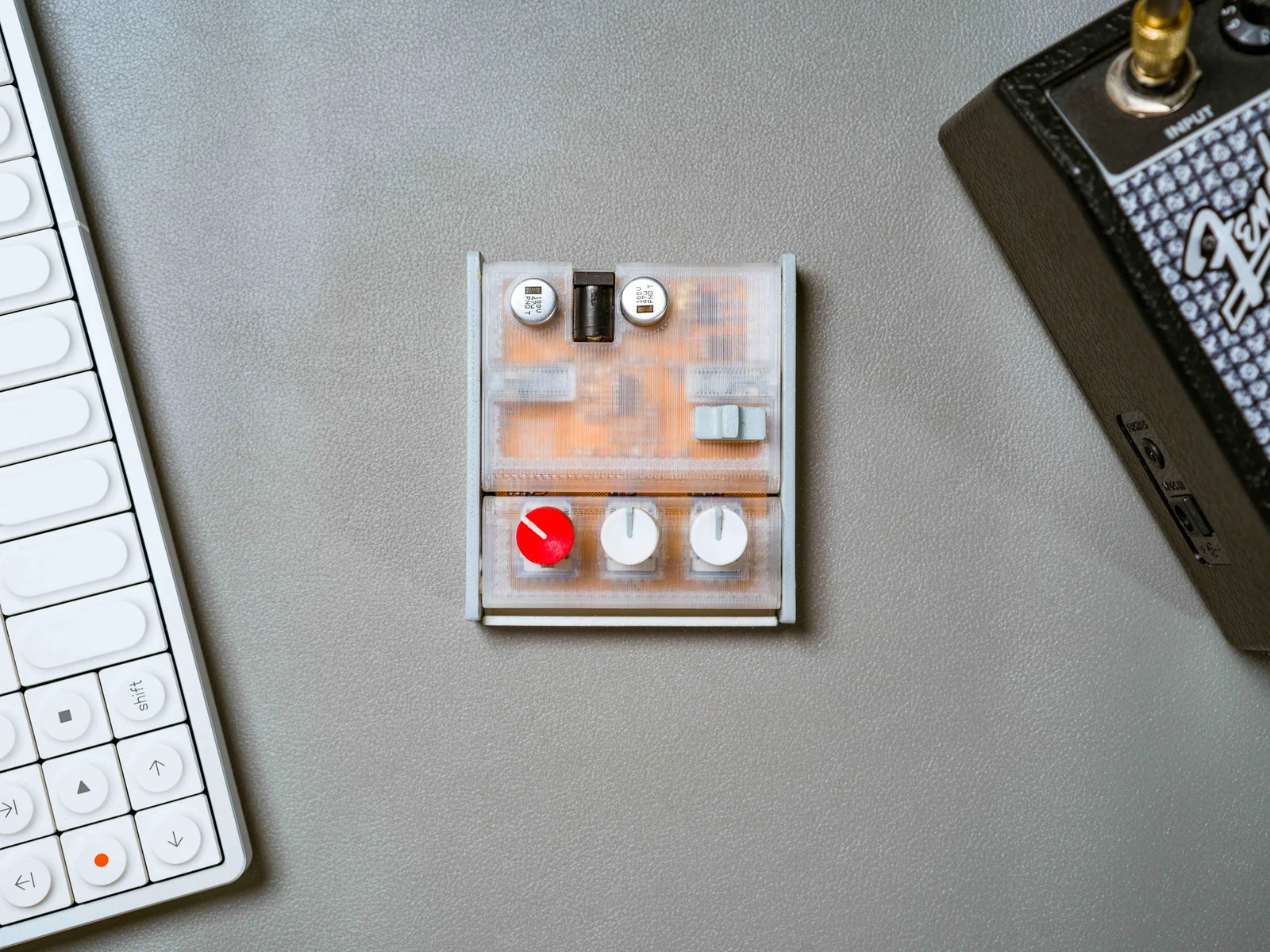

flexFX, view 1

A better angle

I designed flexFX to make tabletop effects more comfortable to use. The knobs angle toward the player, while the unit keeps a slim, compact profile.

A custom flexible printed circuit and 3D-printed TPU let the body bend and lock at an angle during use, then fold flat afterward.

The audio circuit is based on the classic Klon Centaur transparent overdrive.

In detail

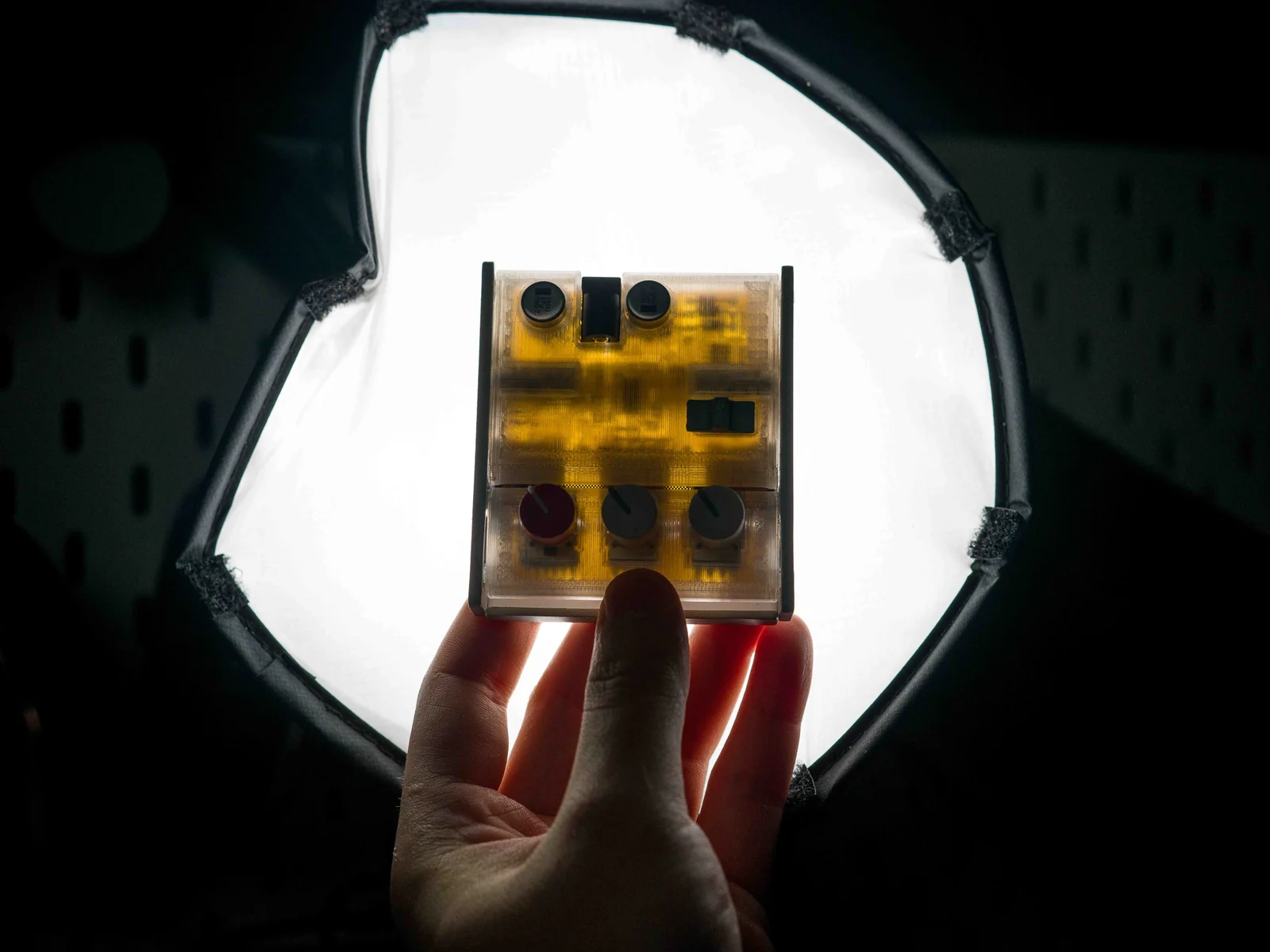

flexFX — A look through the enclosure — A look through the enclosure

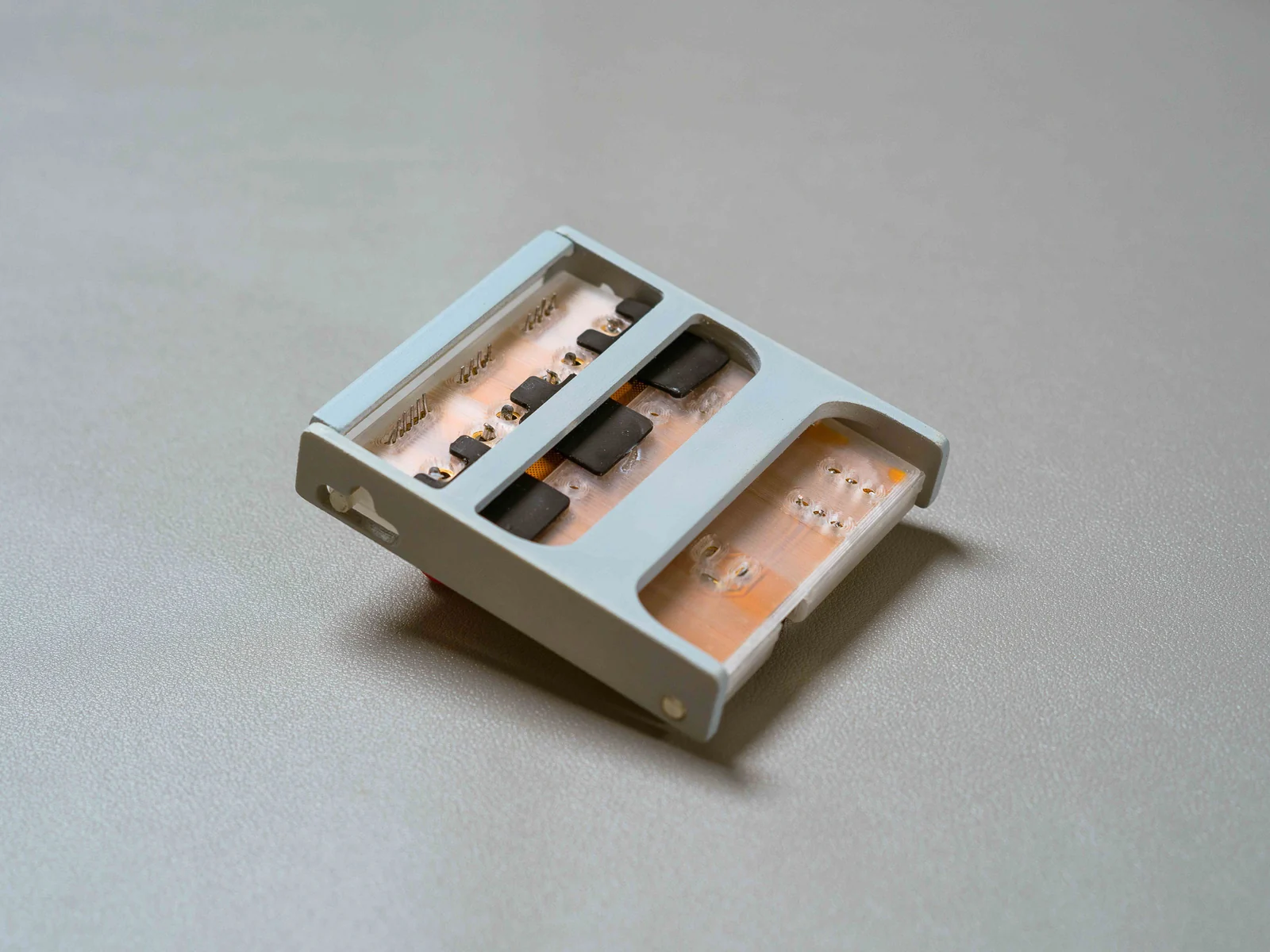

flexFX — Underside view — Underside view

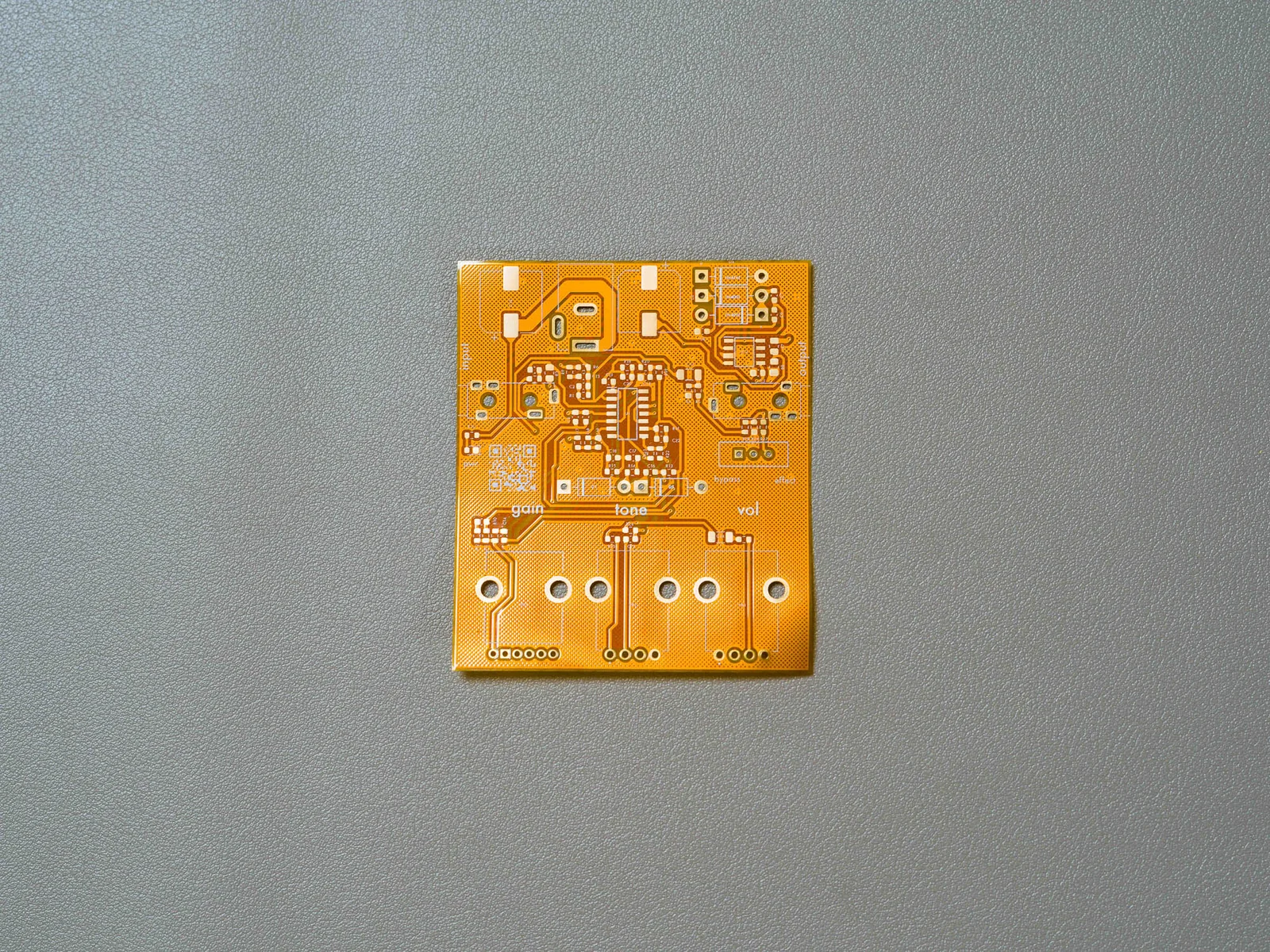

flexFX — The flexible printed circuit — The flexible printed circuit

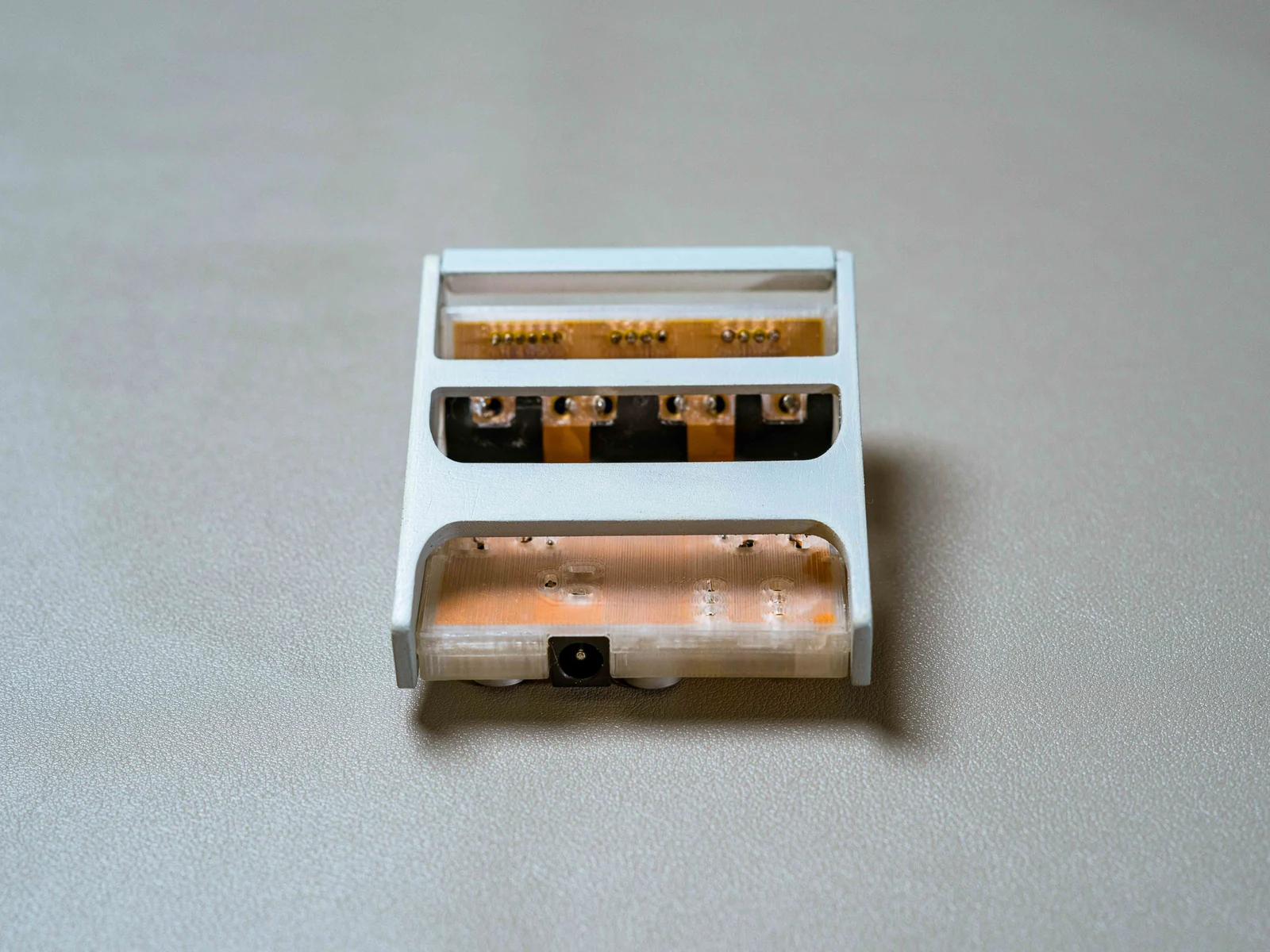

flexFX — Underside view, another angle — Underside view, another angle

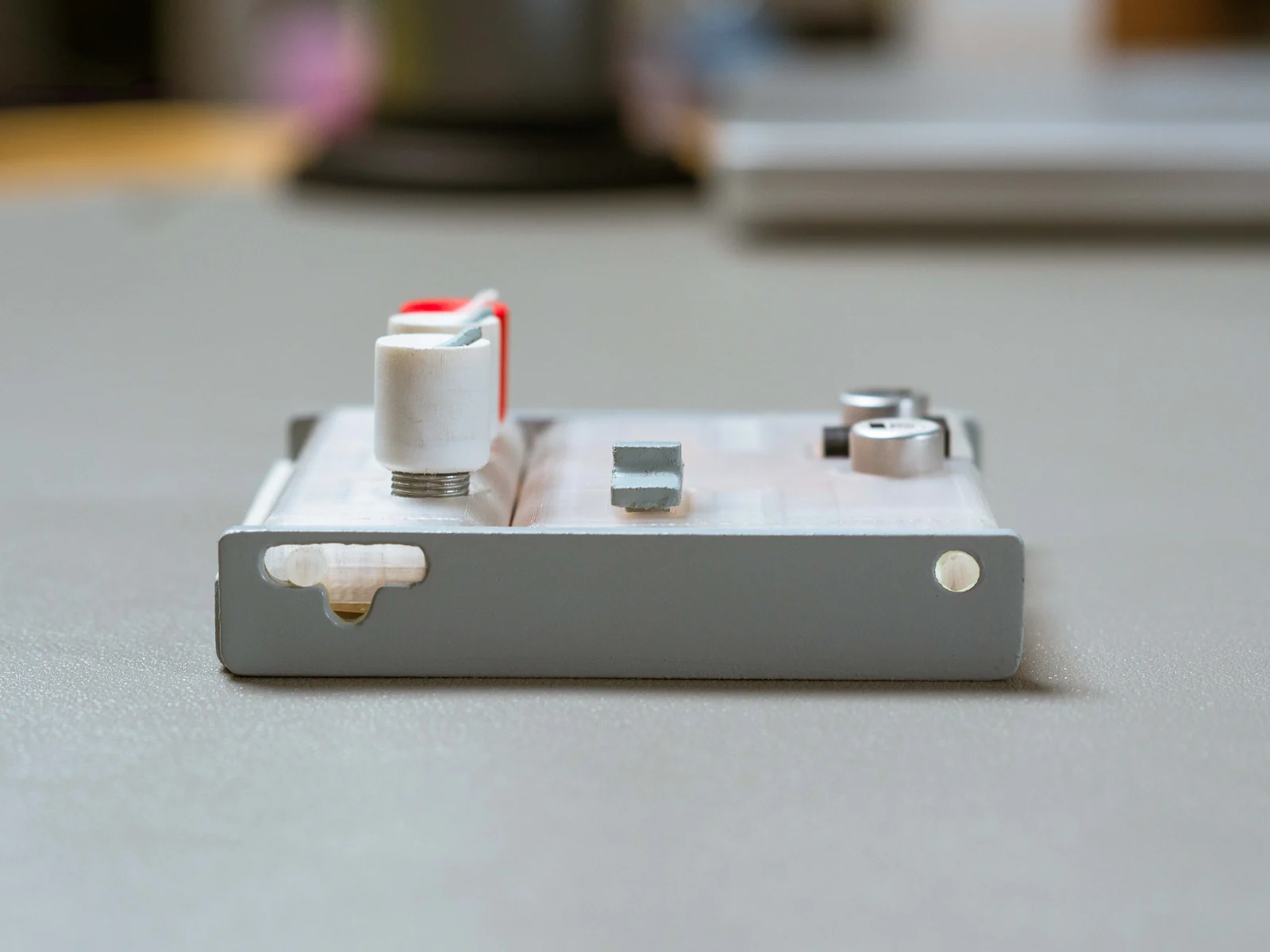

flexFX — Side view — Side view

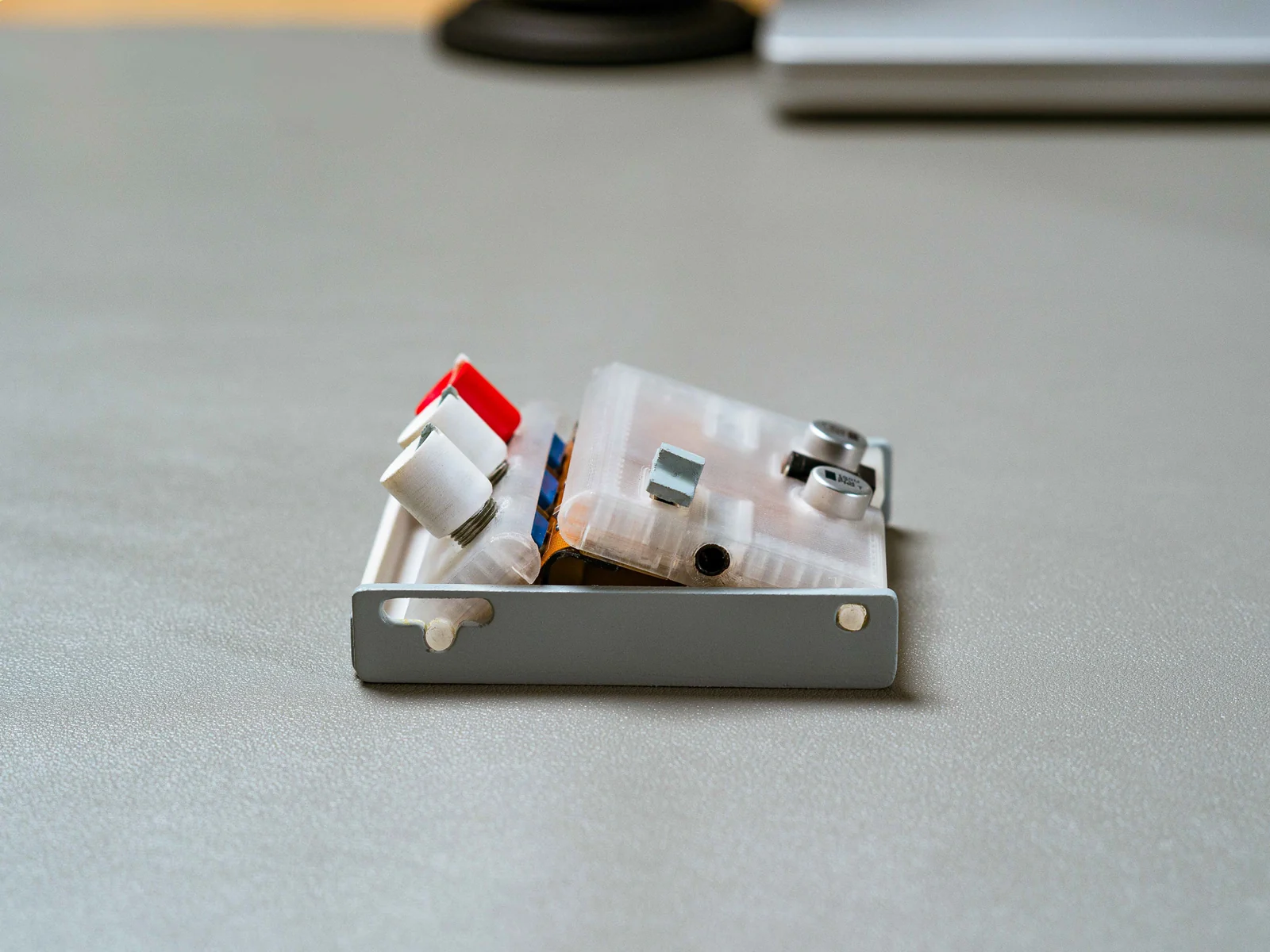

flexFX — Side view, another angle — Side view, another angle

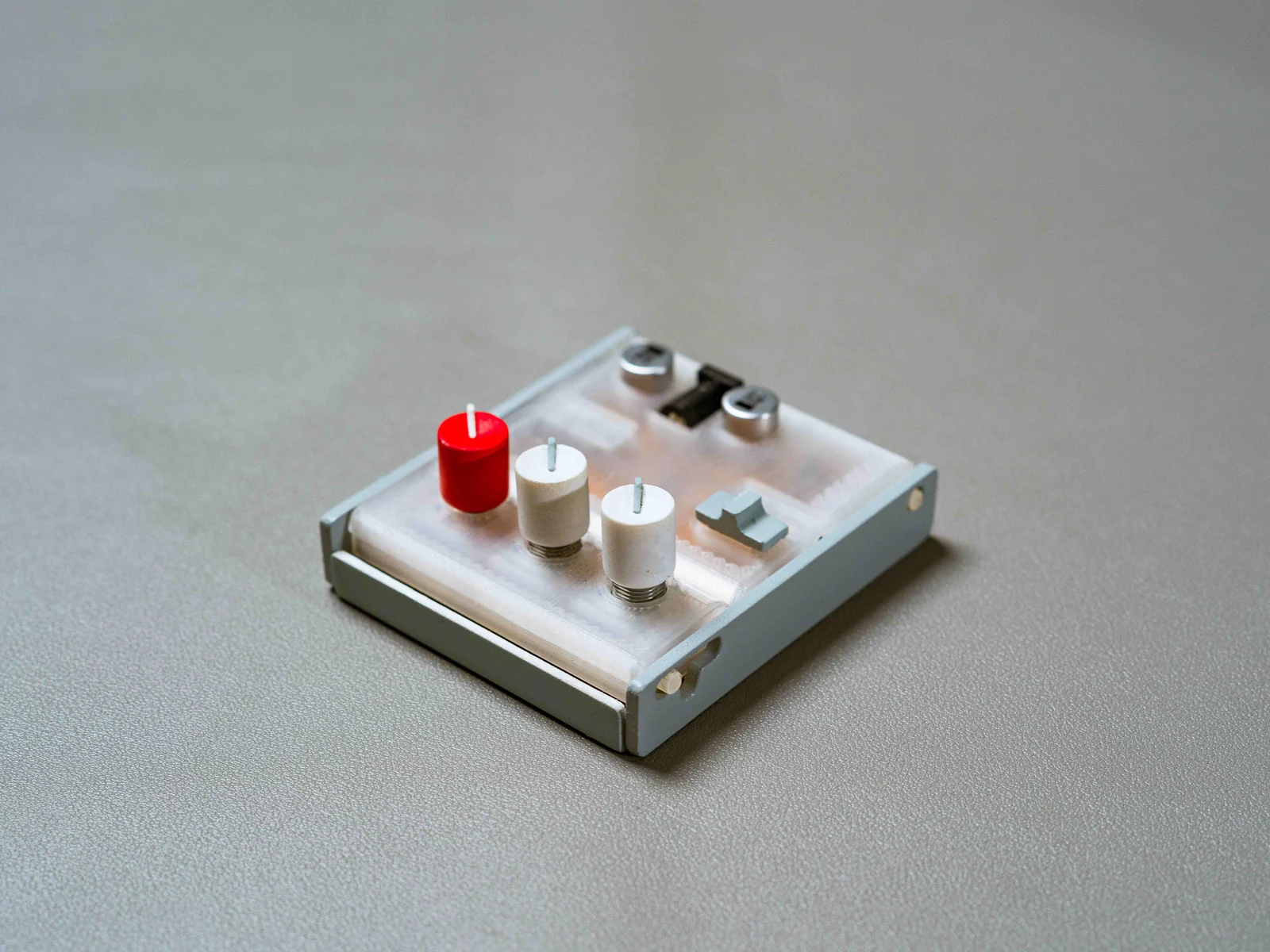

flexFX — Front view — Front view

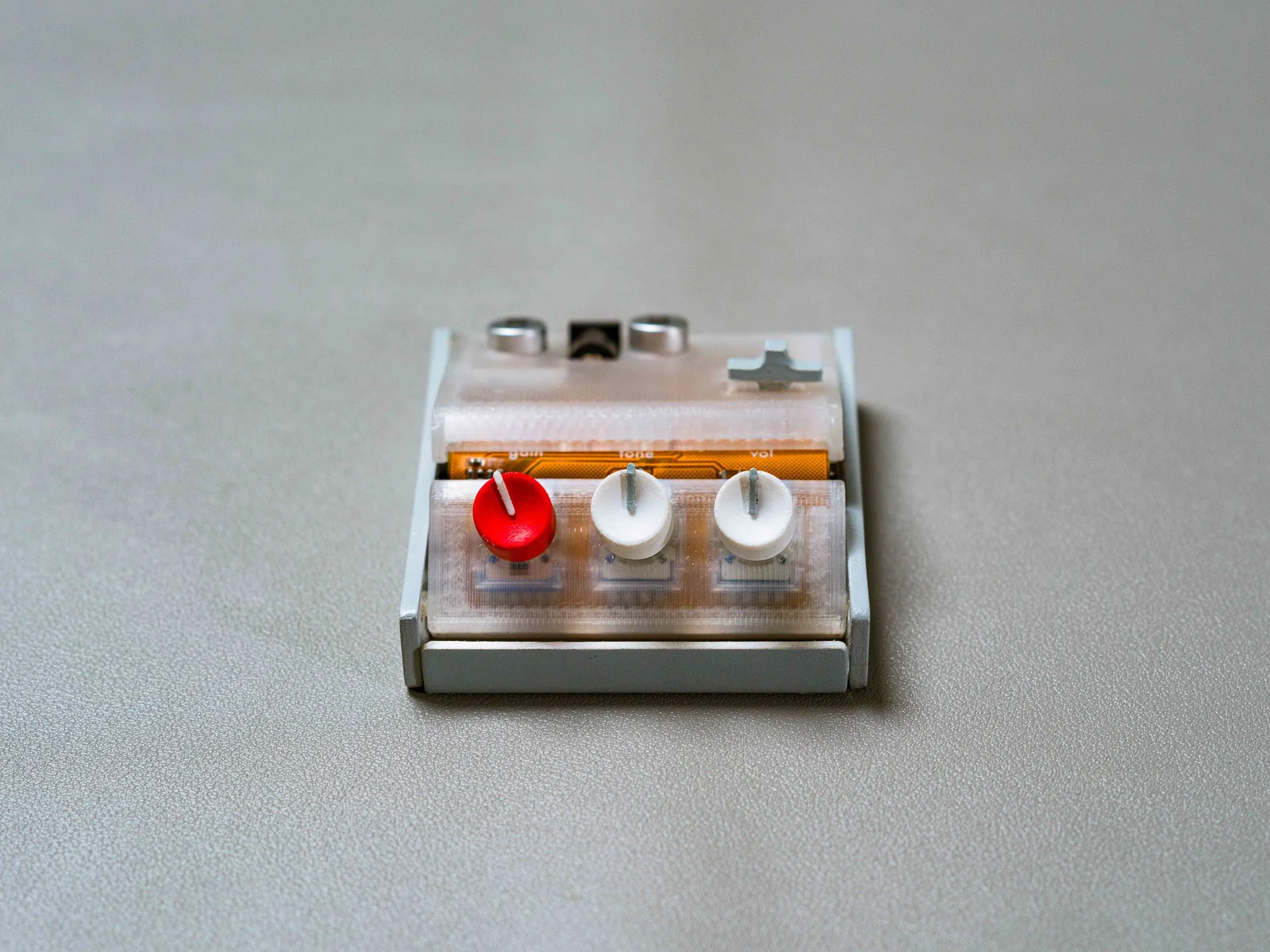

flexFX — Front view, another angle — Front view, another angle

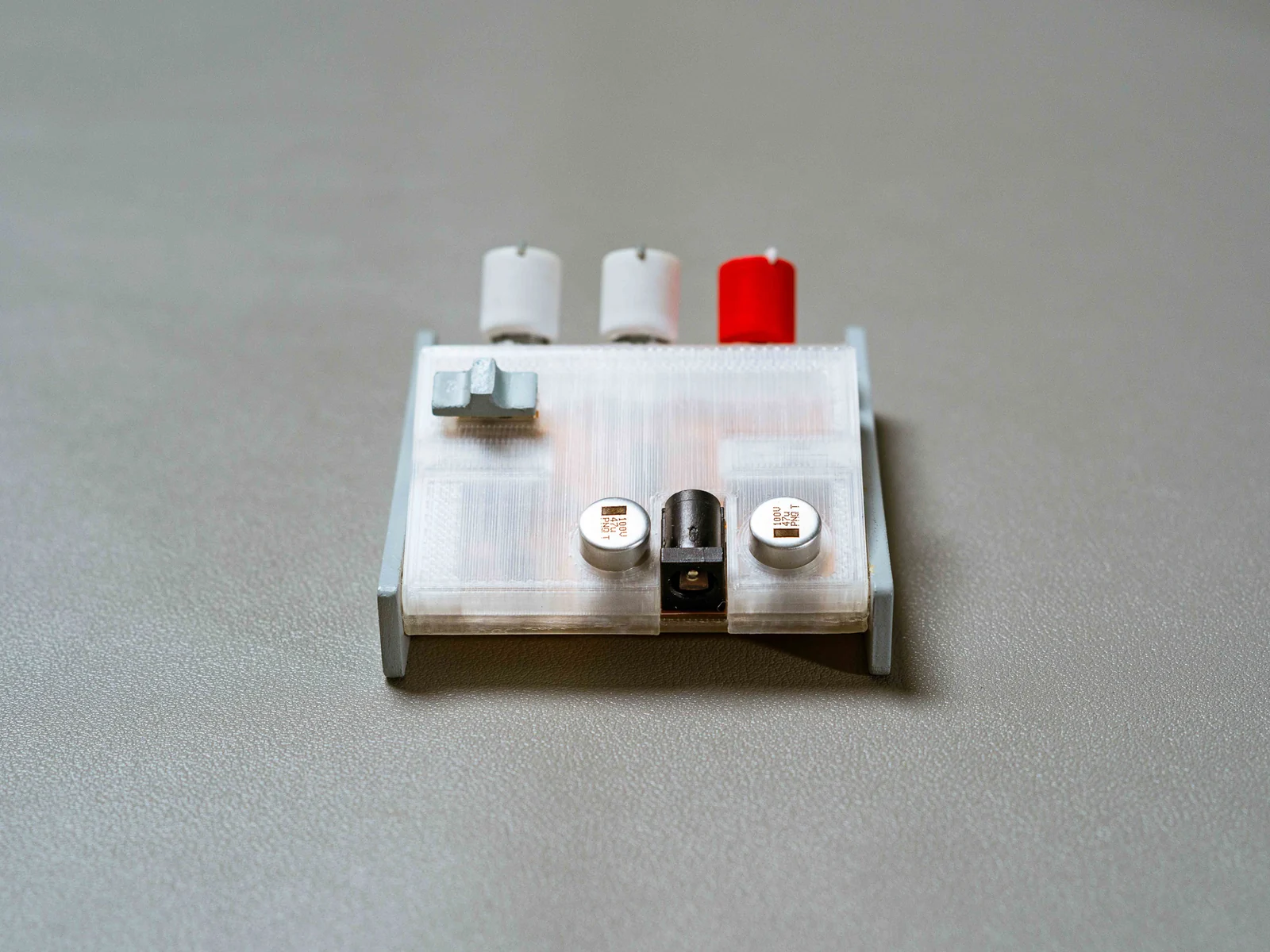

flexFX — Rear view — Rear view

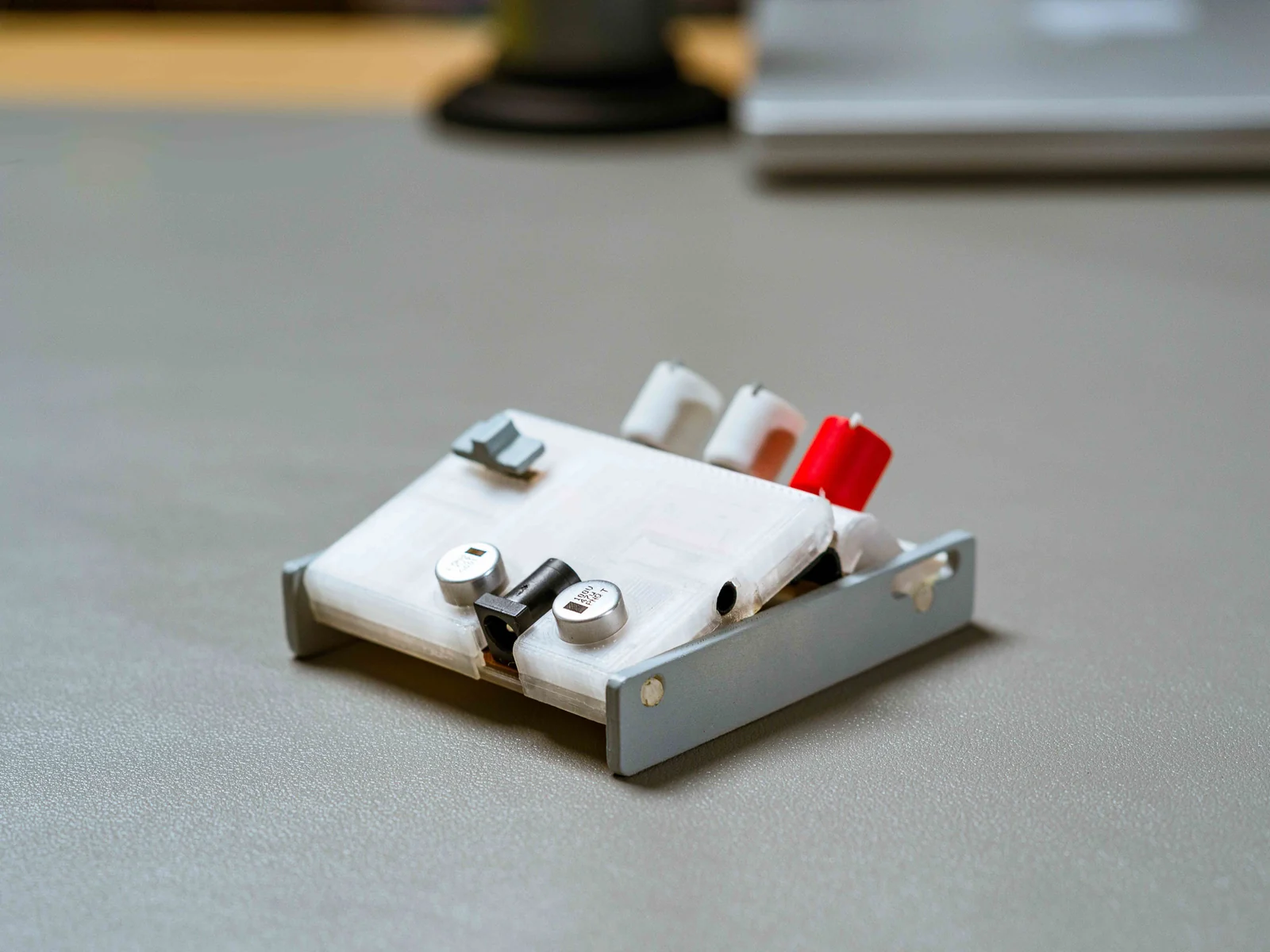

flexFX — Rear view, another angle — Rear view, another angle

Materials & credits

Materials & components: PLA, flexible PCB, TPU, spray paint
