Graduation Pin

LED souvenir pin

A small celebration of everything I learned at ITP.

  • PCB design
  • Wearable
  • Electronics

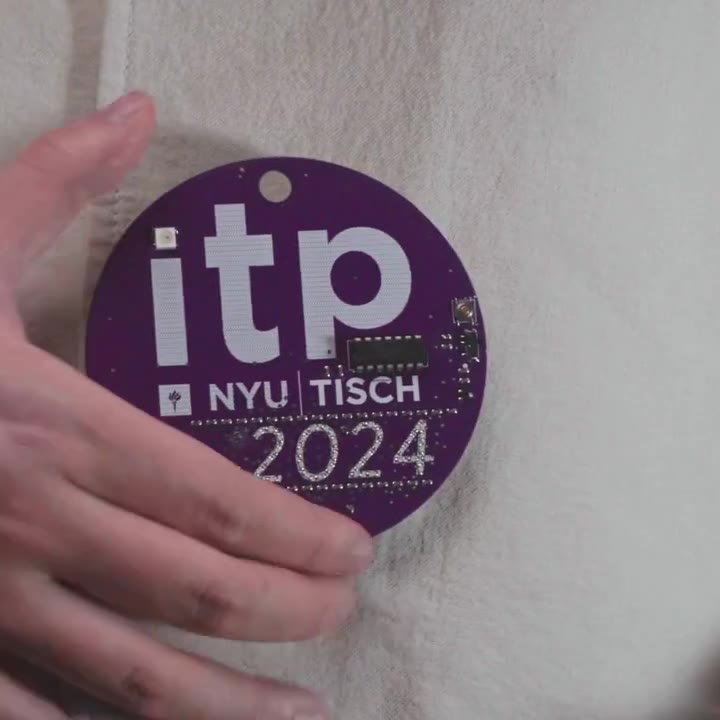

Graduation Pin preview

Made for graduation

I designed and programmed this pin to celebrate graduating from ITP, bringing together the electronics and programming skills I learned during my master’s degree.

The custom PCB carries an ATtiny microcontroller, a NeoPixel and LEDs, with slide and tactile switches and CR2032 batteries. I wore it to graduation.

In detail

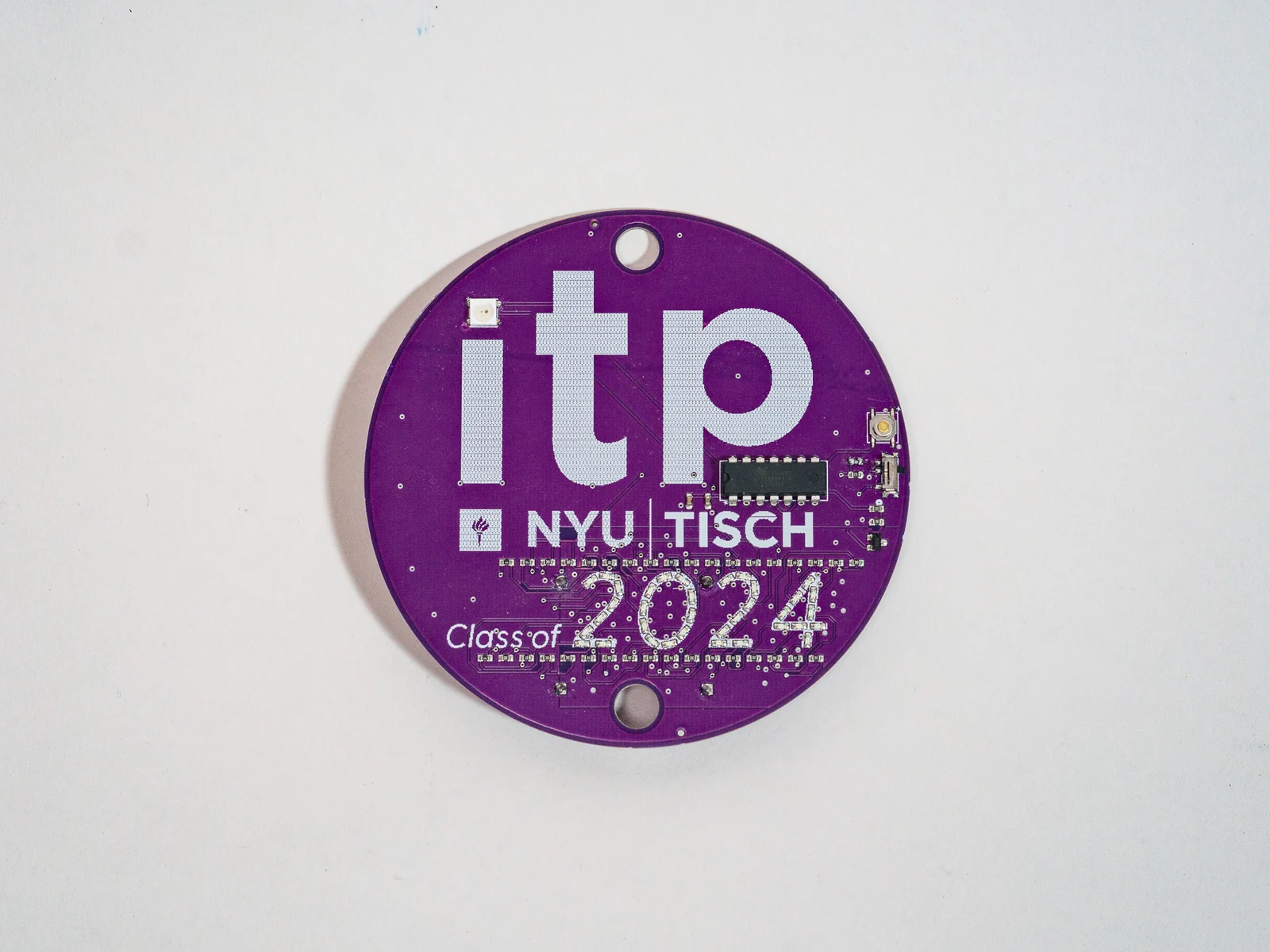

Graduation Pin — Front view
Front view

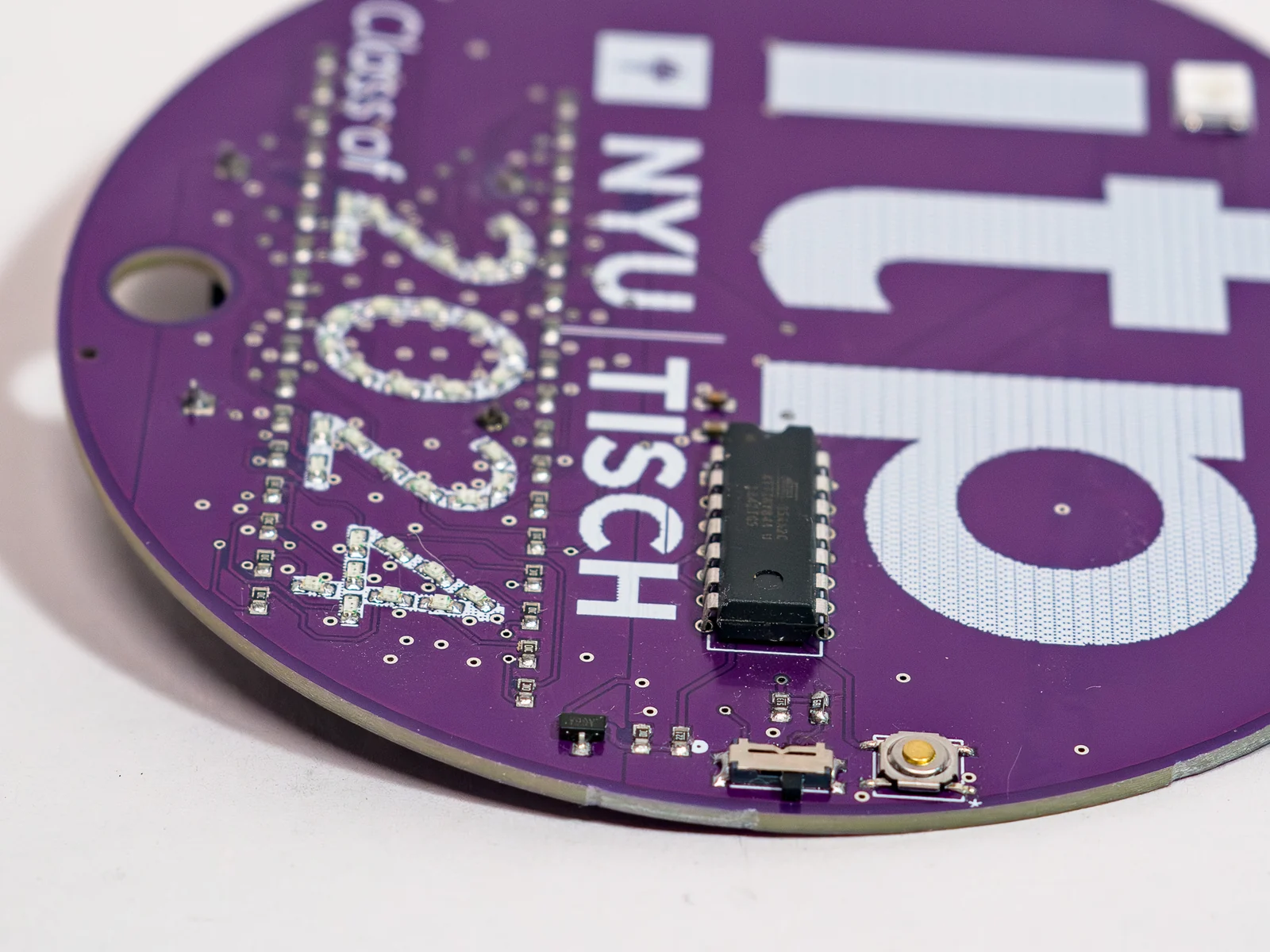

Graduation Pin — Slide and tactile switches
Slide and tactile switches

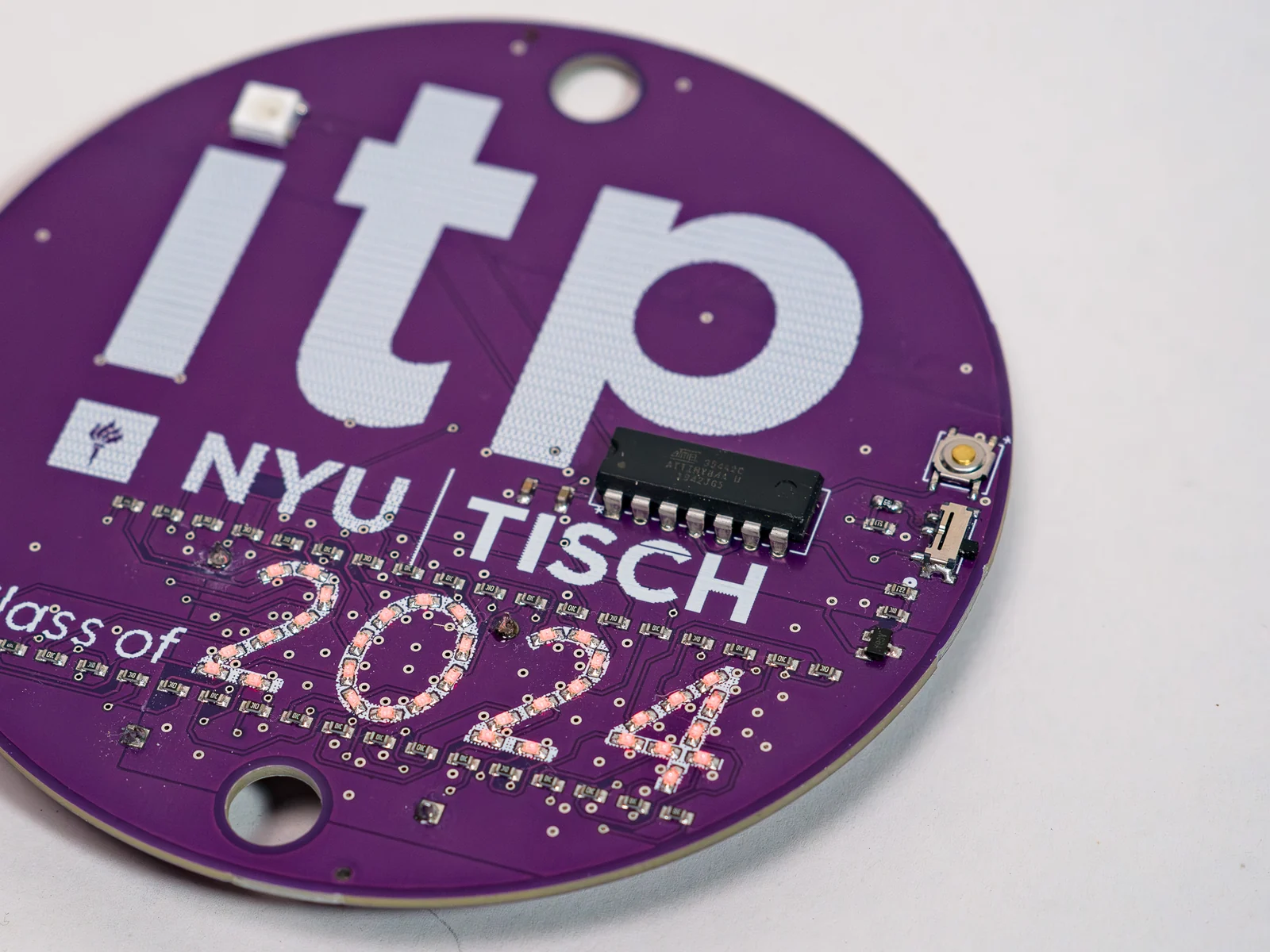

Graduation Pin — LEDs and the ATtiny microcontroller
LEDs and the ATtiny microcontroller

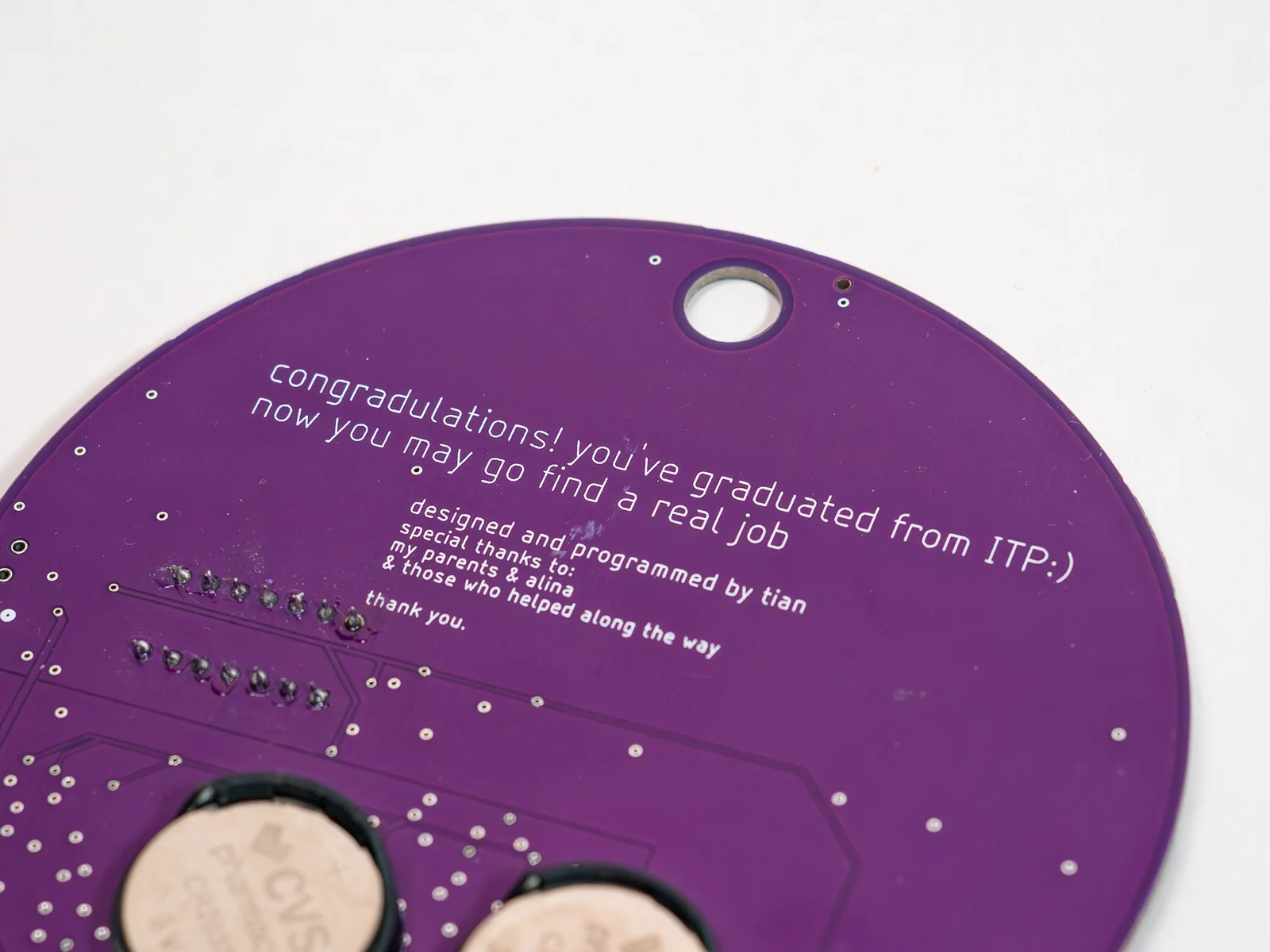

Graduation Pin — Silkscreen on the back of the board
Silkscreen on the back of the board
Graduation Pin — Wearing the pin at graduation
Wearing the pin at graduation

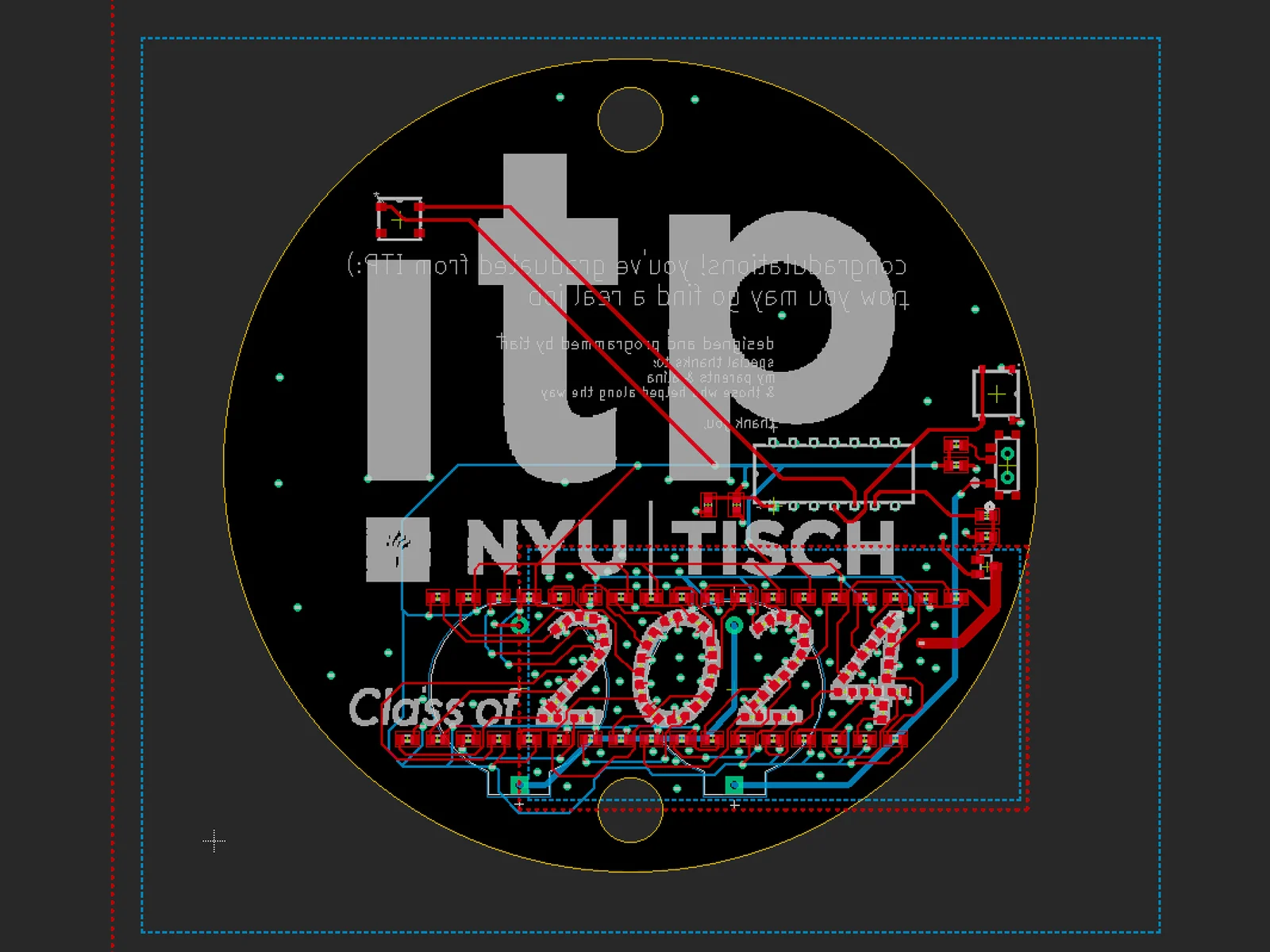

Graduation Pin — Circuit schematic
Circuit schematic

Materials & credits

Components
PCB, ATtiny microcontroller, NeoPixel, LEDs, CR2032 batteries, slide switch, tactile switch
